SKU
XFS_K002.7P
EAN
5904378630368
MIDDLE CLAMPS ADJUSTABLE WITH EARTHING PINS 6 SET 30-35MM BLACK CLICK
118
- Stock in Olsztyn - 30 pcs.
- Stock in Gliwice - 88 pcs.
Details

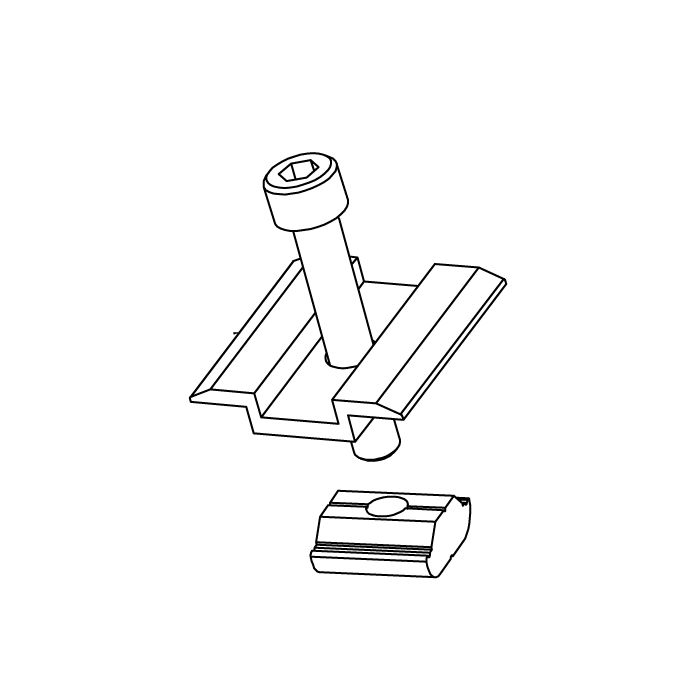

Set for mounting photovoltaic modules with a frame thickness ranging from 30 to 35 mm. Embossed pins ensure equipotential bonding between the module frame and the supporting structure. The clamps included in the set are black in color.
The set includes:
- 6 pcs - MIDDLE CLAMP 41X50 WITH GROUNDING PINS BLACK (index no.: Y_KK0032),
- 3 pcs - GROOVED RAIL CONNECTOR L110 (23x110x12) (index no.: XPF_L004),
- 6 pcs - SOCKET HEAD CAP SCREW M8X40 DIN912 A2 (index no.: M745),
- 6 pcs - CLICK NUT (index no.: M694),
- 6 pcs - SPRING WASHER TYPE "S" M8 DIN9250 A2 (index no.: M1070).
Compatible structures:
B-01, B-02, B-03, B-057, D-01, D-02, D-03, D-057, T-05M, PB-062, PB-064, PB-068, PB-064B, PB-068B, PI-068P
The set includes:
- 6 pcs - MIDDLE CLAMP 41X50 WITH GROUNDING PINS BLACK (index no.: Y_KK0032),
- 3 pcs - GROOVED RAIL CONNECTOR L110 (23x110x12) (index no.: XPF_L004),
- 6 pcs - SOCKET HEAD CAP SCREW M8X40 DIN912 A2 (index no.: M745),
- 6 pcs - CLICK NUT (index no.: M694),
- 6 pcs - SPRING WASHER TYPE "S" M8 DIN9250 A2 (index no.: M1070).
Compatible structures:
B-01, B-02, B-03, B-057, D-01, D-02, D-03, D-057, T-05M, PB-062, PB-064, PB-068, PB-064B, PB-068B, PI-068P
More Information
| Weight | 0,38 kg |
|---|---|
| Producer | CORAB |
| Material | Aluminum |
| Technology | 0 |
| Height | 0.00 m |
GPSR information
The individually sold components of support structures (including, but not limited to, profiles, connectors, brackets, clamps, and other elements) constitute integral parts of systems designed for specific support structure applications and have been engineered exclusively for use within these systems.
These components are not intended for standalone use or for any other constructional, installation, or technical purposes beyond those specified by the manufacturer.
Any use that deviates from the intended purpose is carried out solely at the user's own risk and may result in safety hazards, loss of warranty, and the exclusion of any liability on the part of the manufacturer or seller for damages arising from such use.
